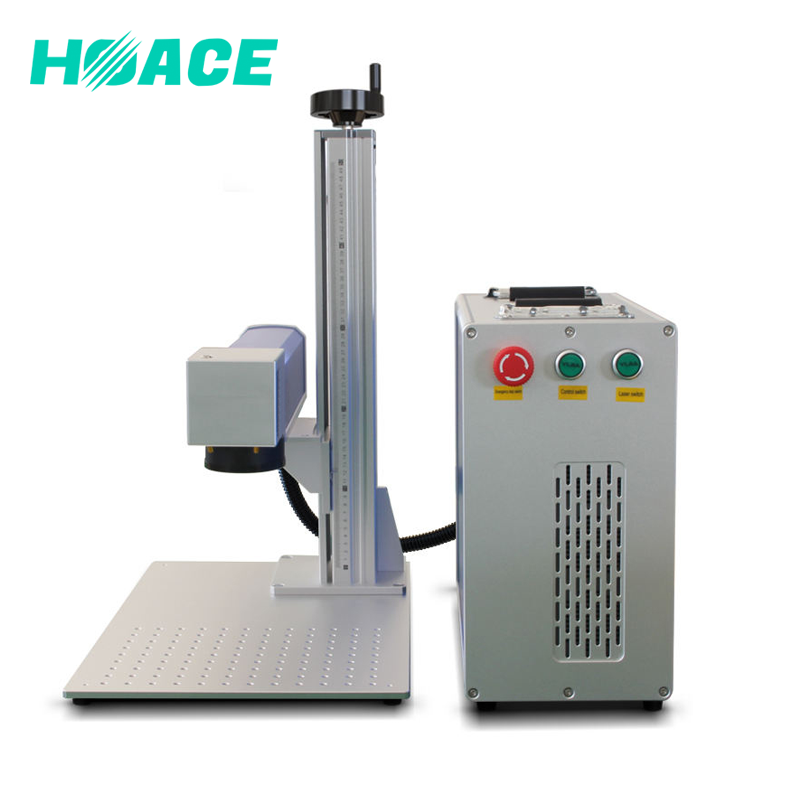

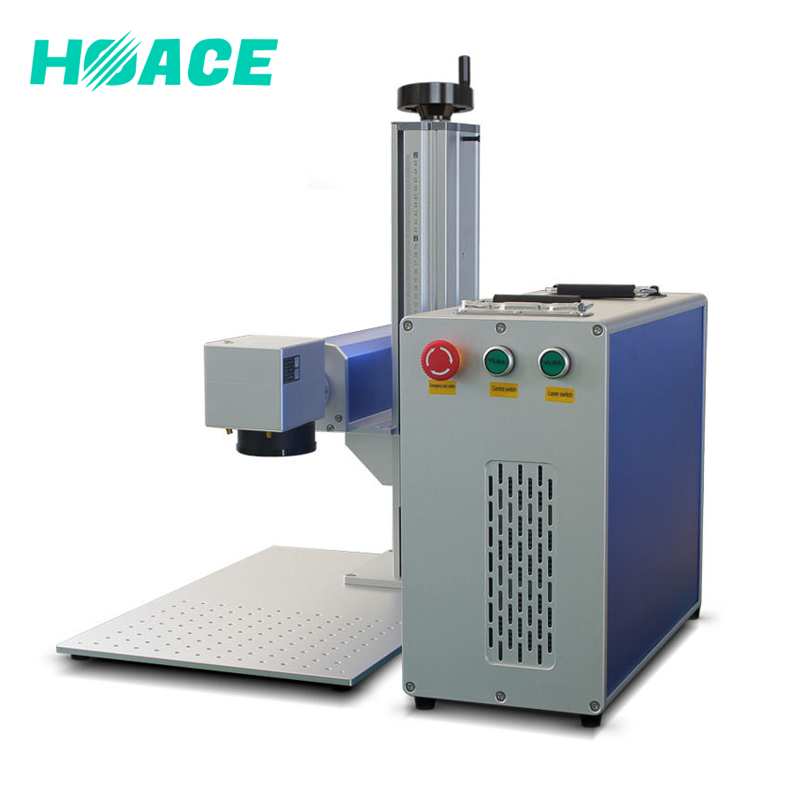

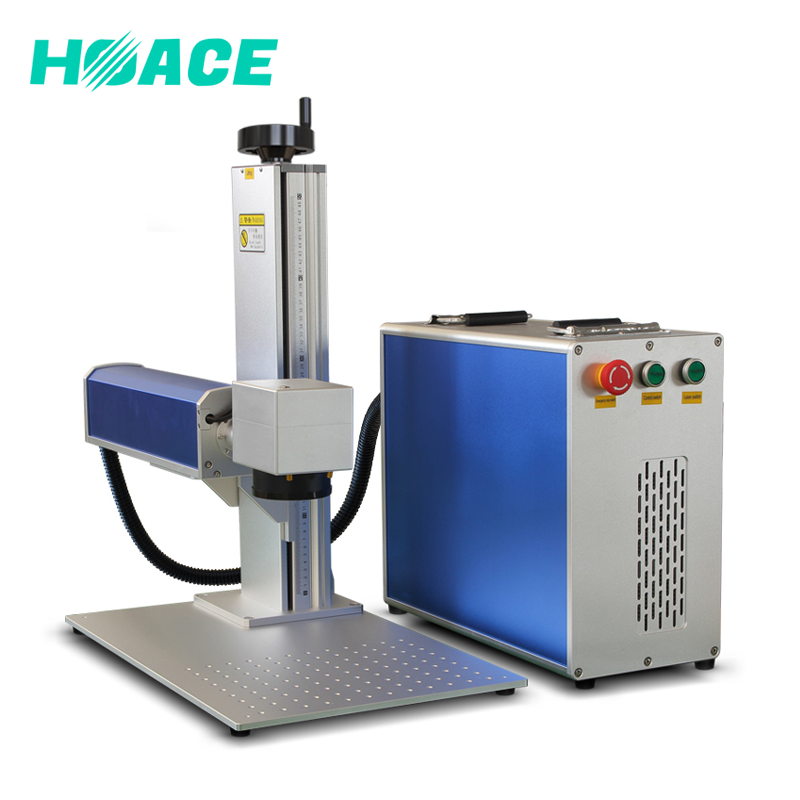

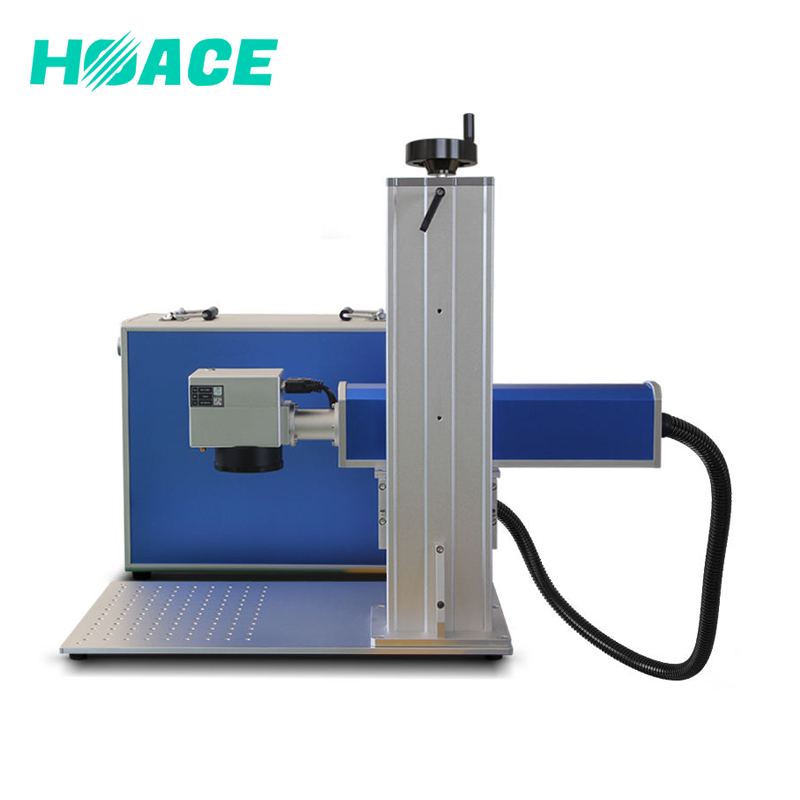

HF Series Split Fiber Laser Marking Machine

(22 customer reviews)

$990.00

 310 Sets / Month Waiting for Sale In Stock
 3 Year Free Warranty for Entire Machine
 1-2 Days Handling and 2-4 Days Shipping
 30-Day Money Back Guarantee for Your Purchase
 Support customization;Add visual positioning system including assembly line ect;
 24h Email:sales@hoace.com

Description

Enhances brand image; can mark a variety of materials.

After Sale Service Introduction

What kind of support you can get from Hoace Intelligent?

Hoace Intelligent Lifetime Tech Support Lifetime Tech Support

  • Default 3-Year Warranty
  • 2-year Warranty Extended for Buyer Show
  • 30% OFF for Parts of Machine to replace beyond the warranty
  • Lifetime Tech Assistance for your marking solution
Hoace Intelligent Local Tech Specialists Local Tech Specialists

  • For complex machine crashes that our technician can’t deal with, local tech Specialists will assist.
  • Local after-sales service area:
    USA / Canada / Brazil / Mexico / Ecuador
    Turkey/Ukraine/Kazakhstan/Iraq
    Korea / Thailand / Indonesia / India
    Poland / Saudi Arabia / Italy
    Australia / South Africa
    From March 12, 2022: HOACE Intelligent has decided to withdraw from the Russian market. (We will continue to provide after-sales service to our previous customers but will not start new business)
  • Free Tutorials for Beginners
Hoace Intelligent Customer Support Center Customer Support Center

  • Online Chat Support
  • Prompt reply within 24 hours
  • Customer Complaint Channel

Application

Applicable Materials:

Metals: Aluminum, Gold, Silver, Copper, Stainless Steel, Brass, Titanium, Tungsten,
Nonmetals: Colored Acrylic, Hard Plastics, Brick, Granite, Marble, Tile, Nylon, Light Button, ABS, PVC, PES, Ceramic, Rock, Stone, Marble, Artificial Leather, etc.
*Some PVC-based acrylics can create toxic fumes when lasered.
Contact us with questions on specific materials not listed, we can process a sample for confirmation.

Applicable Industry:

Workshop,  Hardware industry, Gift Shop, Print Shop, 3C Digital, Souvenir Shop, Jewelry Store, Pet Store, Medical Use, Small Business, Esty Seller, Munitioner, Education, Office, DIY, Kickstarter Entrepreneur.

Application Cases:

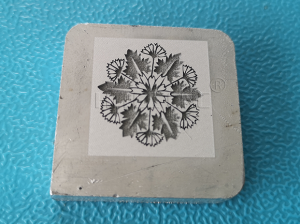

Engraving on jewelry, guns, firearms, blades, axes, knives, coins, stamps, forks, spoons, cutlery, flasks, wallets, tumblers, mugs, cups, dog tags, slate coasters, etc.

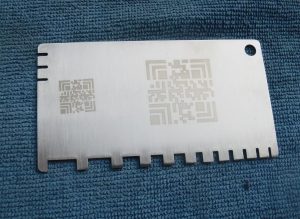

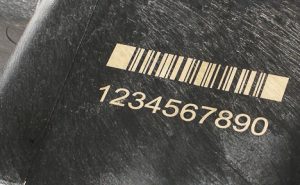

Laser mark logo, text, barcode, numbers, serial numbers, image, photo on metal & plastic parts and tools, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.

application industry

Machine Features & Benefits

HF Series Split Fiber Laser Marking Machine , High configuration and quality,with marking high precision speed and stability, no pollution, low noise and other significant characteristics.

Laser power : 20w/30w/50w/60w/80w/100w(optional)
Laser source : JPT, MAX, IPG ,RAYCUS (optional)
Lens,Marking area:70*70mm, 110*110mm, 150*150mm, 175*175mm, 220*220mm, 300*300mm (Contact us for larger area engraving, we have large format machines)

●Positioning: red light positioning system helps you quickly lock the marking position,no need ruler.
●EZCAD 2.0 and JCZ-LMCV4 control board, ensuring higher stability and powerful functions
●Galvanometer system: the imported high-speed galvanometer scanning head can improve the marking speed up to 7000mm/s.
●Compatible with Coreldraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP,etc
●Support SHX,ITF fonts; automatic encoding, printing serial number, batch number, date, barcode OR code, automatic jump number, etc

If you need to mark leather, wood, glass and other materials, it is recommended to use CO2 and UV marking machines.If processing cups, rings and other cylindrical or round bodies,we can provide rotating fixtures. Please contact us for more information : info@hoace.com, we will provide professional solutions.

Free test samples – We can carry out free marking effect tests according to your product material
Video Live- You can connect with our sales consultants to watch the production process and the operation of the machine in online video.

Machine Specification

Name

HF Series Split Fiber Laser Marking Machine

Model

HF-S20

HF-S30

HF-S50

HF-S100

Laser Power

20 Watt

30 Watt

50 Watt

100 Watt

Laser type

Max / Raycus / JPT / IPG Laser Source

Wavelength

1060-1085 nm

Marking Speedy

≤ 7000mm/s

≤ 7000mm/s

≤ 7000mm/s

≤ 7000mm/s

Laser Frequency (kHz)

20-100KHZ

20-100KHZ

1-4000KHZ

1-4000KHZ

Pulse Width

120-150ns

120-150ns

2-500ns

2-500ns

Pulse Energy

1 mJ

1 mJ

1.5 mJ

1.5 mJ

Marking deep

0.1-0.5mm

0.1-0.5mm

0.1-2mm

0.1-2mm

Power consumption

500W

500W

600W

800W

Marking area

70*70mm / 110×110mm / 150*150mm 175×175mm / 200×200mm / 300×300mm

Cooling System

Air Cooling

Wooden Packing size

85*55*45 cm / (L*W*H)

Gross weight

60 KG

Optional Rotary Fixture:

50mm, 69mm, 80mm, 100mm, 120mm, 160mm, 200mm, 220mm etc.

More optional Parts:

Conveyor table / Vacuum system / Electric XY table.

Electrical Requirements

110V-240V/50Hz-60Hz(According to local electricity supply).

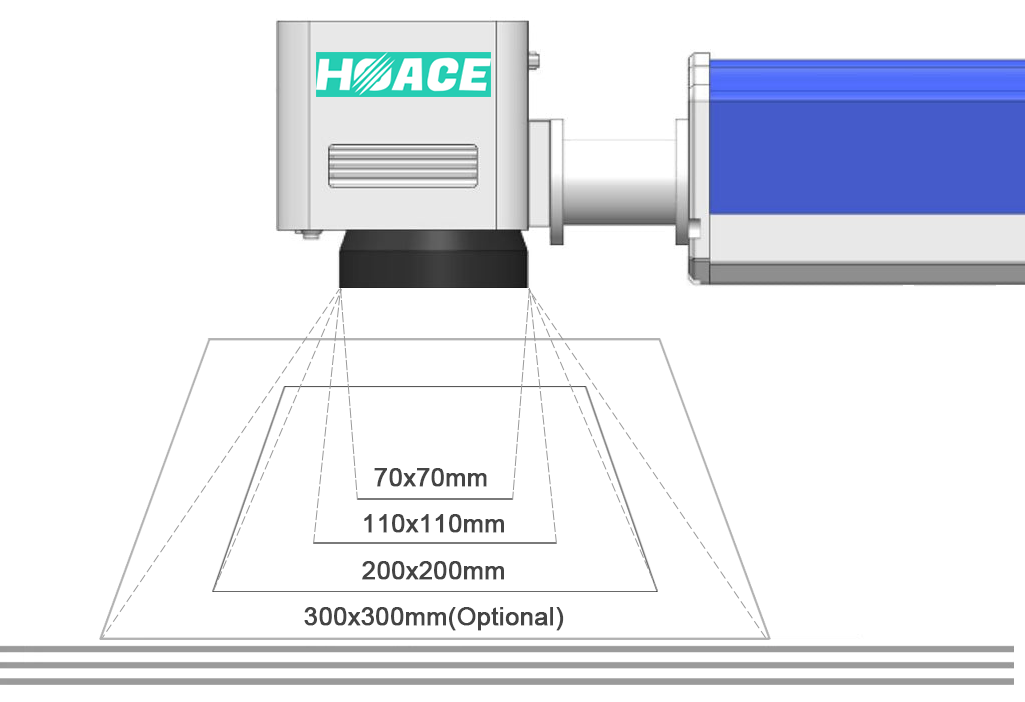

Reference scan area

reference scan area

High-quality F-Theta lenses guarantee a perfect application result over the entire surface.

We can equip different F-theta lens according customer marking products size. Laser standard size :110*110mm, the bigger lens the longer focus so laser beam will be weak.

F-theta Part No.

F-100

F-160

F-210

F-254

F-290

F-420

Working Fields

70*70mm

110X110mm

150X150mm

175X175mm

200X200mm

300X300mm

Recommended Column Height

500 mm

500 mm

500 mm

500 mm

500 mm
800 mm

800 mm

Focal Length

Non-standard 100mm

160mm

210mm

254mm

290mm

420mm

REMARK : Machine default Standard installation F-160, marking area 110*110mm, Column high 500mm

Machine detail

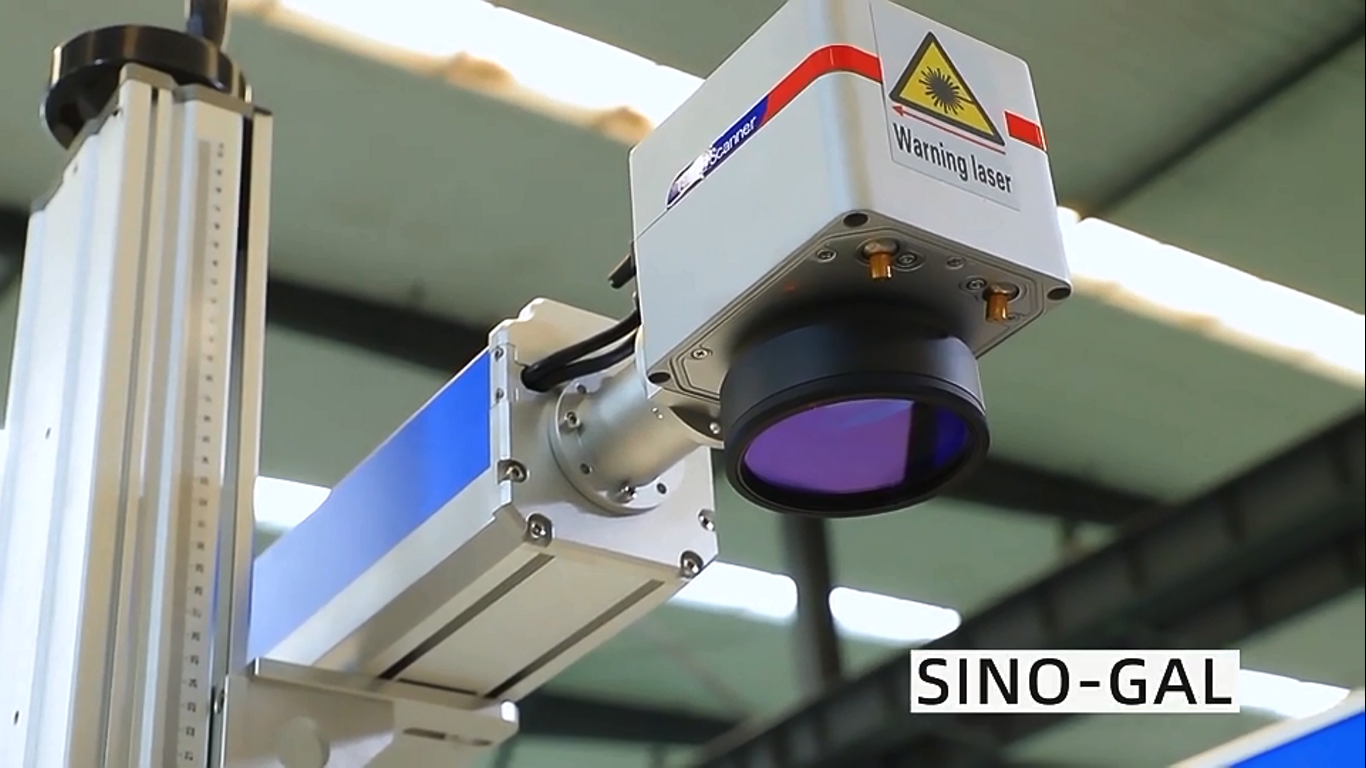

sino galvo
Sino-galvo scanning head Double red poiner easy find focus,standard incident spot diameter is 10mm. The galvanometer system has the characteristics of zero drift, small size, low temperature and stable and reliable operation.

high light focusing mirror
Wavelength field lens Imported high light focusing mirror.Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity.
raycus laser source
Famous brand Raycus laser source , with stable and long life time , max reach 10.0000+hours , IPG ,JPT laser source all available , let us know your request if any special request.
casing
Aluminum alloy casing The overall material of the casing is oxidized by precision aluminum alloy.Appearance is beautiful and wear-resistant. The internal mechanical structure is reasonable and convenient for maintenance.
working platform
Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.
bjjcz control card
BJ JCZ control card with EZCad2 software .Simple operation, but po-werful function: Compatible with Windows XP/Nista/ 7/8/10. Compatible with Windows XPNi-sta/7/8/10.
Chuck Rotary device

Chuck Rotary device Rotary axis for fiber laser marking machine jewelry can print any round, square material, with high positioning motor, higher accuracy.

Elevator wheel
Elevator Wheel Aviation aluminum alloy mate-rial.High precision density scale, accurateview of pos-tioning size.

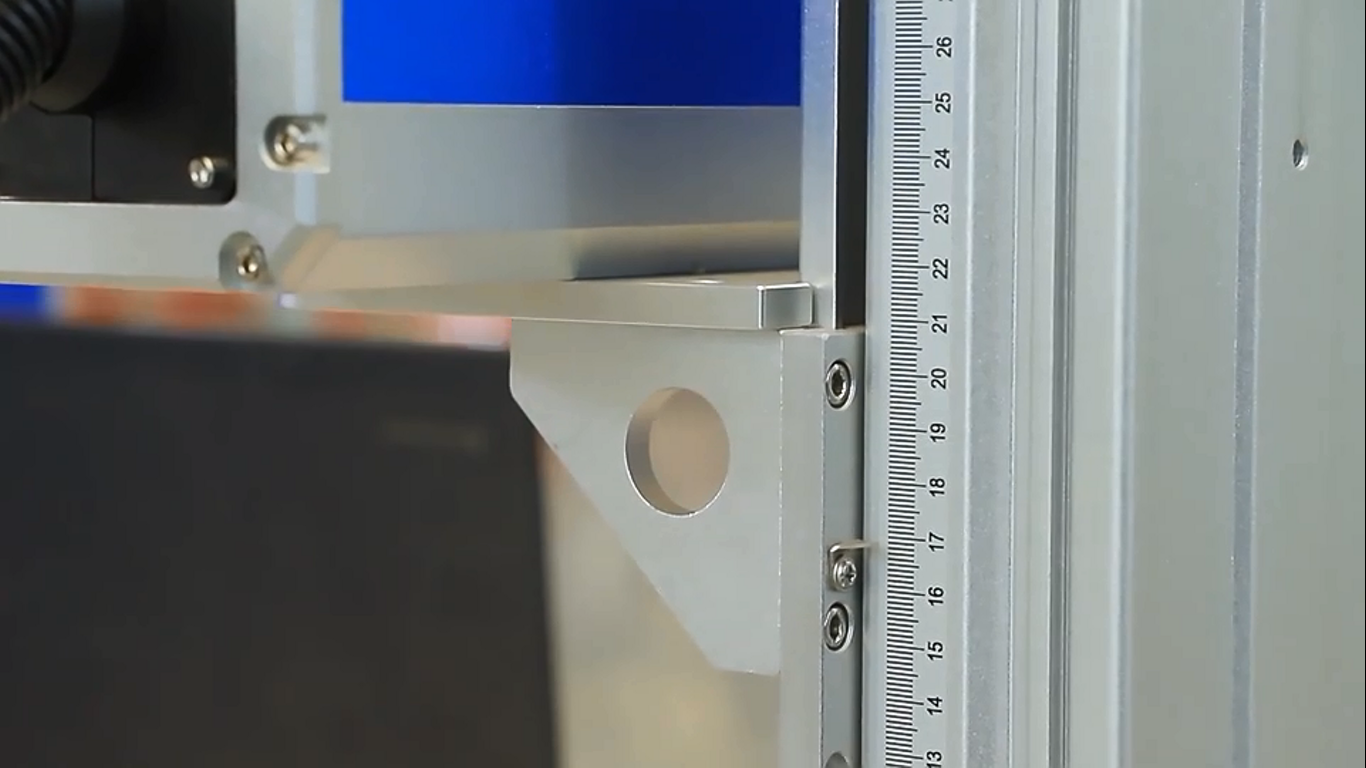

Marking Ruler
Marking Ruler Enables customer to precisely position for fast engraving.Adapting to different products height,higher precision, more detailed.

Kindly reminder

1. If you need for ring , jewelry , bracelet engraving , or tumbler marking , we have different models rotary device here , suitable for different work , so let us know in advance , we will recommend the suitable accessories device for you

2. If you do gold , silver , stainless steel , aluminum cutting mostly , kindly suggest take the fixture together These two are the most popular , there are also have many option accessories , like pen rotary for pen fast speed marking , X Y table for help to adjust product height when working , without moving product etc , kindly list you request , we will recommend suitable accessories based on our professional laser device knowledge

plate fixture
rotary fixture

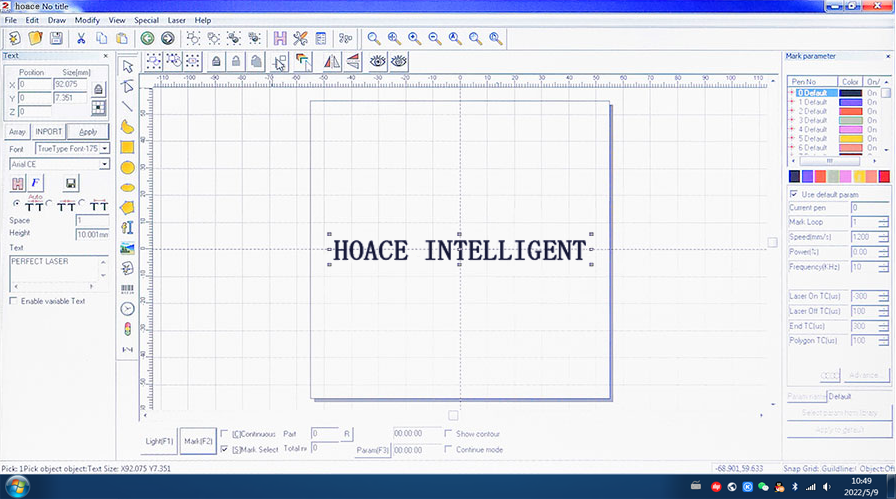

Ezcad- software

  • Powerful editing function.
  • Friendly interface.
  • Easy to use.
  • Support Microsoft Windows XP, VISTA, Win7, Win10 system.
  • Support ai, dxf, dst,plt, bmp, jpg, gif, tga, png, tif and other file formats.
  • Support for TrueType fonts, single line fonts USF), SHX fonts, dot matrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variable text processing, changing text in real time during processing, can d-irectly read and write text files, SQL databases and Excel file.

ezcad software

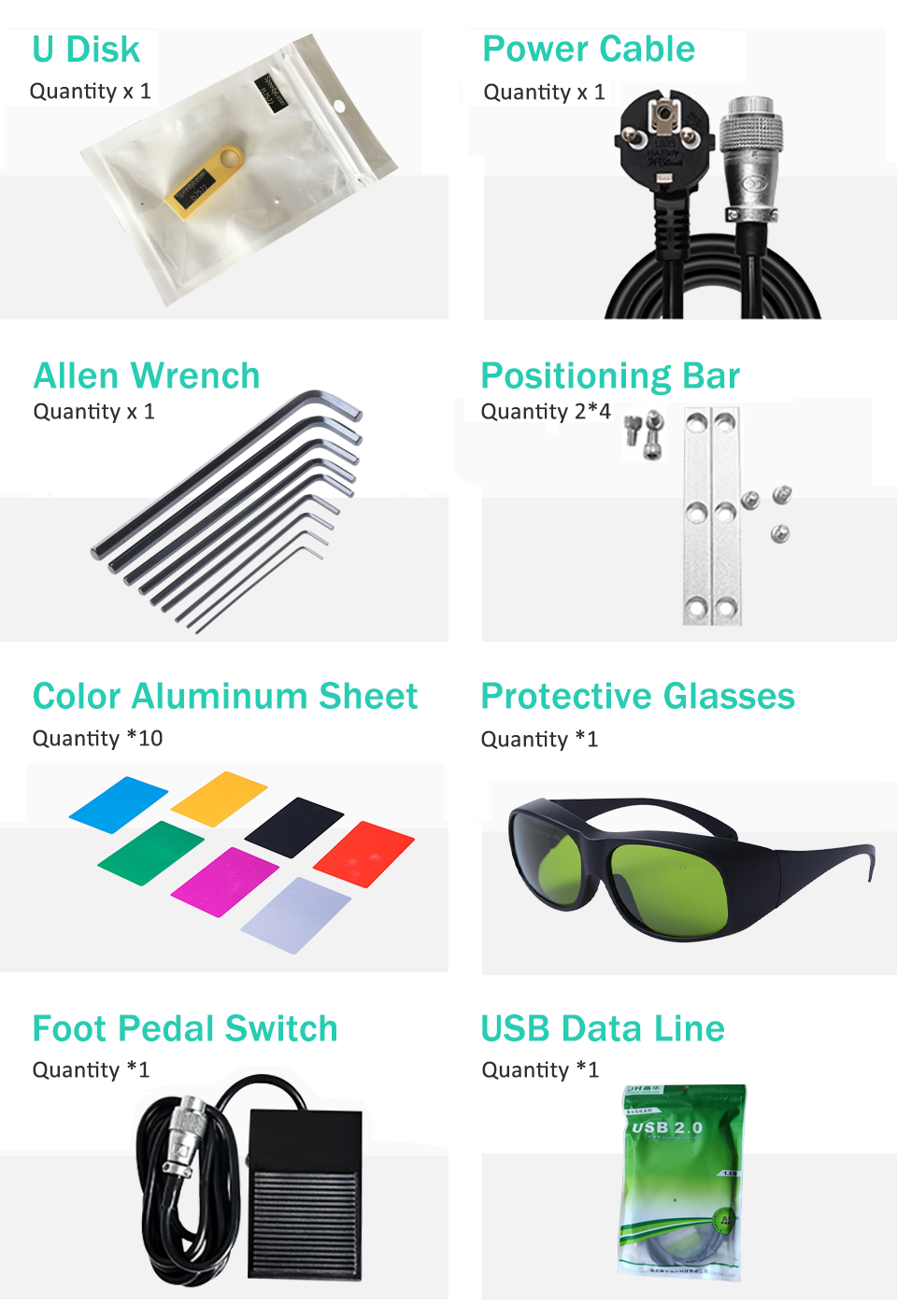

PACKING LIST

paclomg list

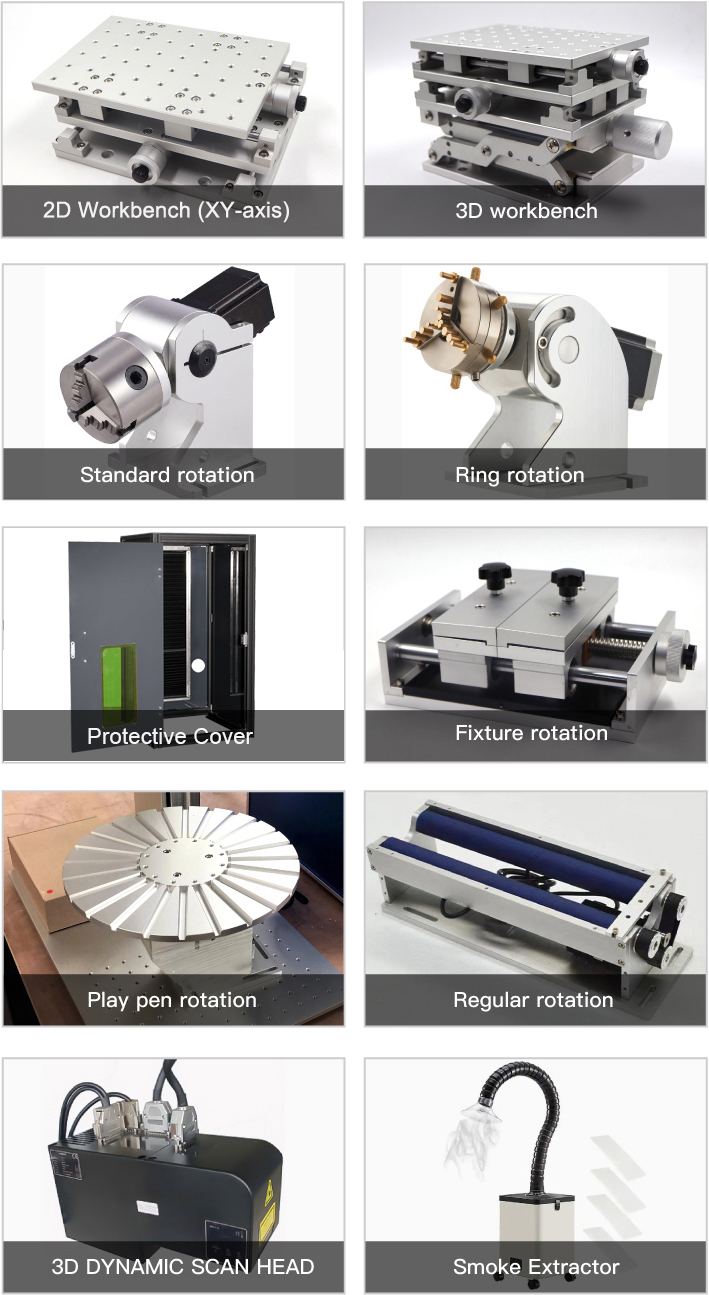

Optional Accessories

optional accessories

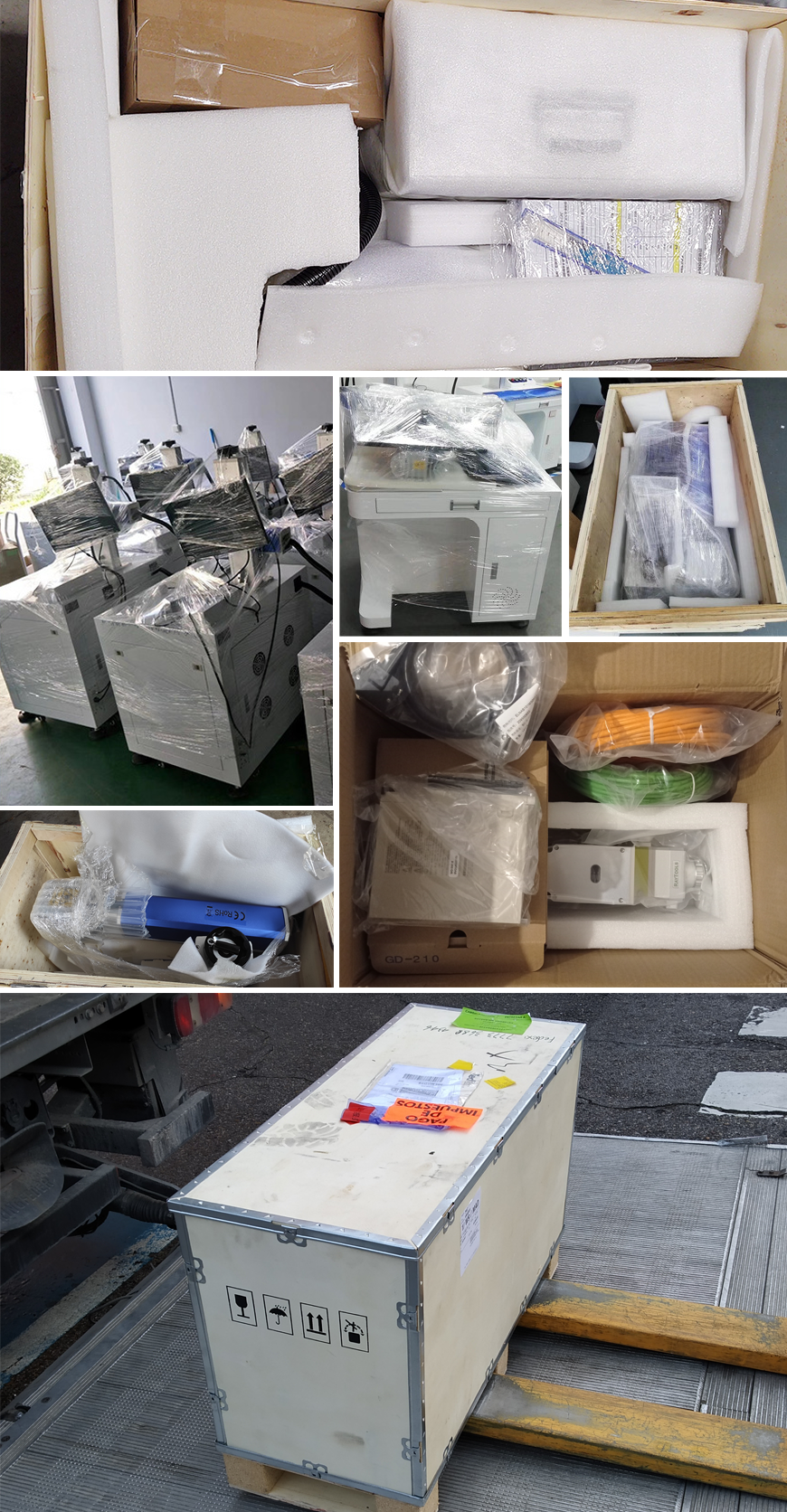

Packing & Delivery

packing delivery

ABOUT US

* 15 years factory production experience
* 3 years machine warranty
* 156 exported country experience
* 38000 square meters fiber laser marking machine factory

* About Shandong Hoace Intelligent Equipment Co.,Ltd.is established in January 2003, owns more than 2000 square meters of researching and office space, more than 38000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 160 countries and areas,and supply OEM service for more than 30 manufactures.

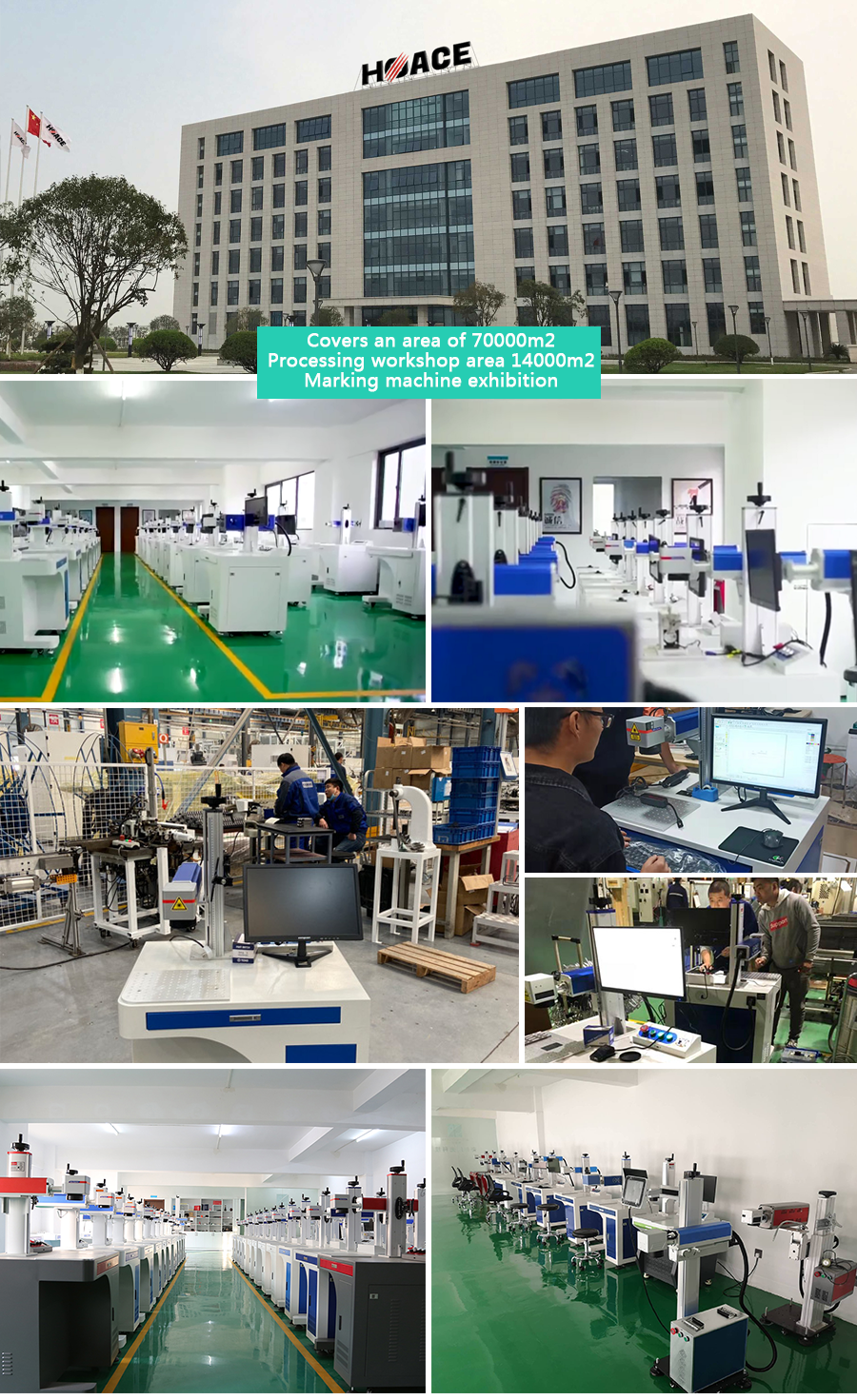

About hoace intelligent

Welcome to Visit Our Factory

If you have plan to visit our fiber/UV laser marking machine factory, just contact us is ok, we will arrange everything well according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us, 24×7, we always here!

Customer Show

Hoace Intelligent customershow

Our Certificate

Hoace Intelligent certificate

FAQ

1. Q: What are the file types that Hoace Series Software imports?
A: You can import any jpg, bmp, plt, dxf and png files that you want.

2. Q: What’s the computer requirements?
A: Hoace Series machines are compatible with Windows? XP/7/8/10 both 32-bit and 64-bit operating systems. The file transfer is performed via USB connection to the computer at speeds up to 500 KB per second or via USB flash drive direct transfer.

3. Q: Is there any laser machine maintenance?
A: All of the configurations of Hoace Series laser marking machine is free maintenance, we provide 2 years warranty.

Q4. Q: How does the Hoace Series machine working?
A: A laser machine works by directing a very powerful laser beam at a precise focal length onto a variety of materials. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.

5. Q: What are the consumables?
A: The Hoace Series laser marking machine if free of maintenance and there are no consumables.

6. Q: Does your laser run from a laptop or Desktop PC?
A: bothare OK, as long as your operation system is window 2000/XP/vista/win7.

7. Q: Does your laser work from printer in coreldraw/autocad?
A: our laser machine can work in CorelDraw and AutoCAD directly.and it connects to PC by using a USB cable.

8. Q: What files is the software compatible with?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW.

9. Q: Whether it can work with Ratory Device?
A: Yes, it can work with Rotary device, we also have many kinds rotary you can choose.

10.Q: How long is your delivery time?
A: We usually make delivery in one weeks after payment.

11.Q: How about the package?
A: Every machine is packed in wooden boxes, if there is a problem with the transportation, we will take full responsibility.

Additional information

Weight 50 kg
Dimensions 760 × 510 × 680 cm

22 reviews for HF Series Split Fiber Laser Marking Machine

  1. CEELEN

    I recommend this company for its professionalism and for the quality of its products of very high robustness.
    I was followed from the first day until delivery.
    A special eulogy to Iris Lu who immediately brought security and professionalism into her work.
    The shipment was very fast and the goods were protected in a perfect way so as to avoid any damage that could happen during transport.

  2. OLIVER BLAUFELDER

    I have tried only some test engravings and the machine seems to work perfectly.
    Some spare parts have been included too (dot pin, couple of switches etc.)
    The machine is well made and performs even better than expected.
    We are pleased with the item and service.
    Good job.

  3. Jim Coleman

    So far this marking machine is as good as I expected and serves its purpose in my gunsmith shop to mark logo build guns.

    Sturdy enough with its structure for metal fabrication. If you take the time to learn the marking software, the machine will be easy to use and provide excellent quality works. In addition, there are some upgrade kits to bring it to the next level. I recommend HFS50 for the price and quality.

  4. SASAKI, HIRONOBU

    Surprised at the quality of this compact laser jewelry marking machine when it arrived. Put it together in 30 minutes. Small size and easy to move. I bought this unit to marking pendant necklaces of silver and gold. It is easy to use with an automatic marking software and there are no issues so far. I will try to mark more types of metals in the next week.

  5. William Graham

    I try to buy well made laser machines that are worth my money, this unit seems to qualify. No real complaints about this marking tool. Great value. Would highly recommend it.
    Also, 1064nm fiber laser beam is dangerous to cause eye injury and hand burns, wear leather gloves and safety glasses when using this machine. Overall, take care.

  6. P. Hare

    I use this product regularly to mark lighters for expanding my advertising business and so far so good. It is easy to operate and I hope to use it for a long time to come.

  7. Mrs M.C. Van Herreweghe

    Have been needing a laser machine for ability to easily mark both metal and acrylic. The HF-S20 is the right one for me. It came well packaged. The provided instructions, parts and accessories will have you up and running in 1hr.

  8. Fawaz Mously

    I was able to get great results with a little preparedness, and tolerances are within a few thousandths. A great mark tool for beginners with patience. Best purchases I have made.

  9. ROHIT AHUJA

    I purchased this machine to do some Ceramic Vase. The machine came within 20 days and I was very impressed. The construction was very solid. It was easy to assemble and I was able to get started doing a project on the day it arrived. Satisfied with the result. Overall, I am appreciative of how easy they make the whole marking process.

  10. Laura Michelini

    This is a special laser marking and you should buy for personalized crystal souvenirs and gifts for your custom business. The subsurface marking details in crystal are amazing. It’s pricey but it was worth every penny. It paid for itself in less than two months.

  11. VIVIAN SHEN

    Air purifier should be upgraded to handle dust because it will make lots of fumes.

    I e-mailed them in the PM. Got a reply within the hour. They shipped me a new industrial air purifier in 10 days for a lot less than I thought it would cost. Overall the customer service is top notch.

  12. GREGORIO SCHIAVON

    I purchased the HFS100 two months ago and to my surprise it showed up at my door less than 10 days after I placed the order. It took me about 2 hours from start to finish, but once it was done, I felt a great sense of accomplishment. I had a few software issues with the first boot, but I called Mike and he was able to help me out quickly. I’ve never used an automatic fiber laser marking machine like this before, but now it keeps my creative juices flowing.

  13. ZONGA

    The software came with the machine is easy to use for my business. With remote assistance from HOACE , the software installation and setup can be completed in 45 minutes. Excellent customer service and technical support.

  14. ISHIZU TOMOJI

    This machine is well designed to marking flat materials quickly with little effort. It is easy to setup and use,Overall, an excellent digital marking tool for flexible materials. I recommend it for fine mark where exact precision is needed.

  15. WILFRED NG

    I purchased this fiber laser marking machine researching how an automatic works in advance. Easy to put together with the instructions that came with it. Contacted HOACE and within a few minutes I got response on software installation and setting. Great customer service.

  16. Paul Swanson

    I purchased this fiber laser marking after researching how to videos and learning its pros and cons in advance. Assembly was sort of easy with the instruction book. The software that comes with it is easy to use. I have done a few tests for 3D deep relief engraving and stippling guns with some examples and a couple of my own creations. It worked well and resulted in smooth and clear patterns.So far it is worth the money.

  17. KUWANA SHINICHIRO

    I purchased this fiber laser marking machine watching a Facebook video review. Packaged very neatly and everything arrived intact.I used it to mark 20 glass items and followed the tutorial very smoothly. This unit would be a great machine for a professional or a good marking tool for the occasional user or home hobbyist.

  18. Adrian S. Green

    I am a beginning ad store owner and had to purchase a laser marker as a starter tool. This machine was easy for me to get started. It is automatic and requires no human intervention. It is very sturdy and runs smoothly and quietly. Since getting this laser marking machine, I have used it to expand my business by machining many small parts for my customers. It performs as great as advertised and next year I will consider switching to a higher power machine.

  19. FURUYA NORIO

    Great laser machine that did not let me down, I fell in love with all its abilities. I am an amateur in an educator team.. Got it in 12 days. Easy to handle and use. All works have been finished in one machine. It is well worth it for the value. Best investments for my team.

  20. SUZUKI YASUHIKO

    A decent industrial Marking for me. I’m a Stainless steel nameplate maker and need more precise power machine to support the type of work that I do.

    The software is powerful for my business, it’s a breeze to path and export G-code once you are proficient in CAD design. All in all, I’m satisfied with its overall capability and performance.

  21. MS. NAZIMA

    I bought this machine for my husband as a Christmas gift with a great price. It performs good quality and easy to use. All the parts are tight and balanced.With the instruction manual and YouTube video tutorials from HOACE, he is able to use it with no experience at all.

  22. Michael Owens

    This is my first attempt at Laser Mark with a learning curve. I got excellent support from HAOCE in solving some mechanotechnical faults and particular issues.

    I have a lot to learn but had my first aluminum marking project up and running in no time, and the result is as expected.

    I will try marking plastic plate in the next days, and I think it will work great as long as I use the EZCAD soft and set the right marking speed and other parameters in the software.
